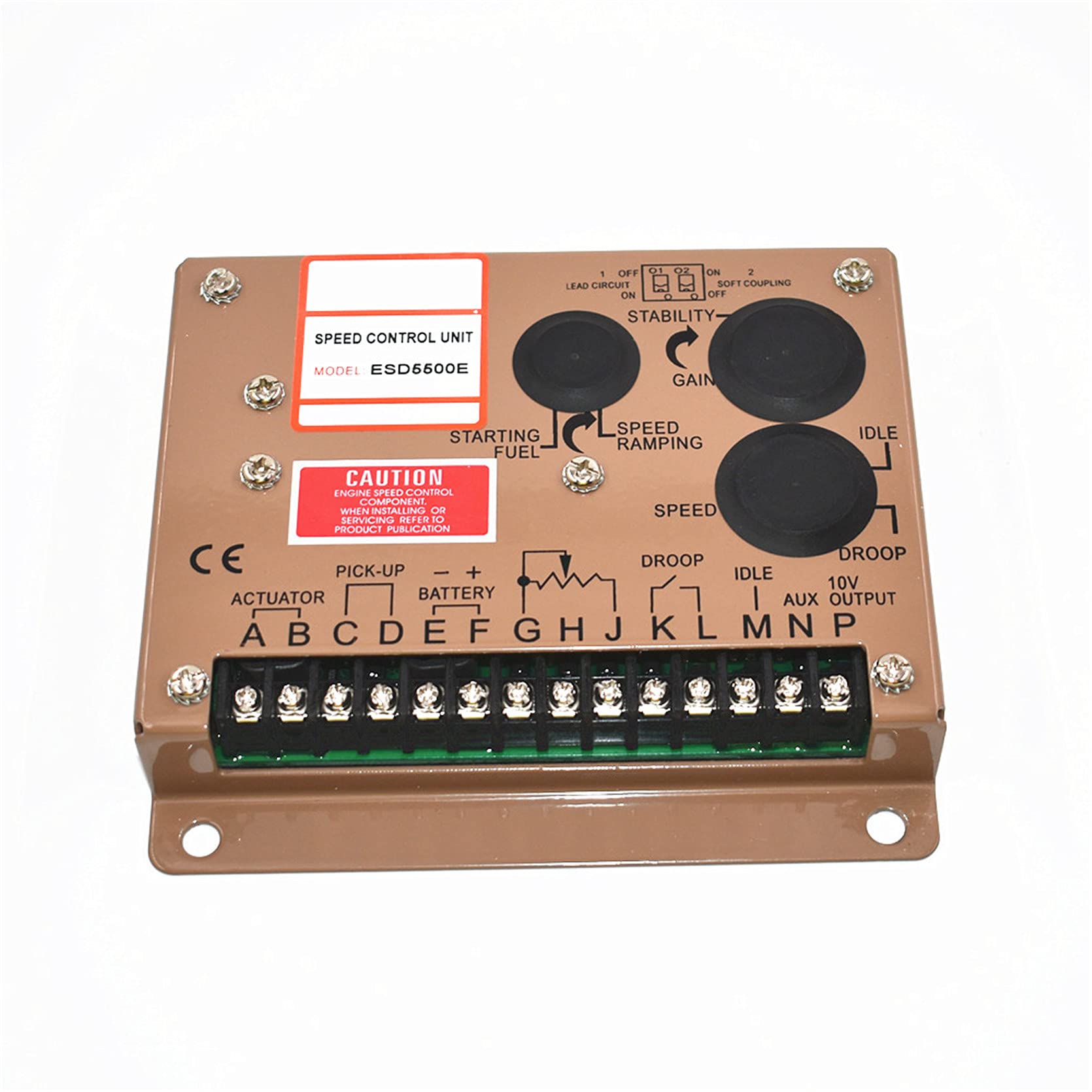

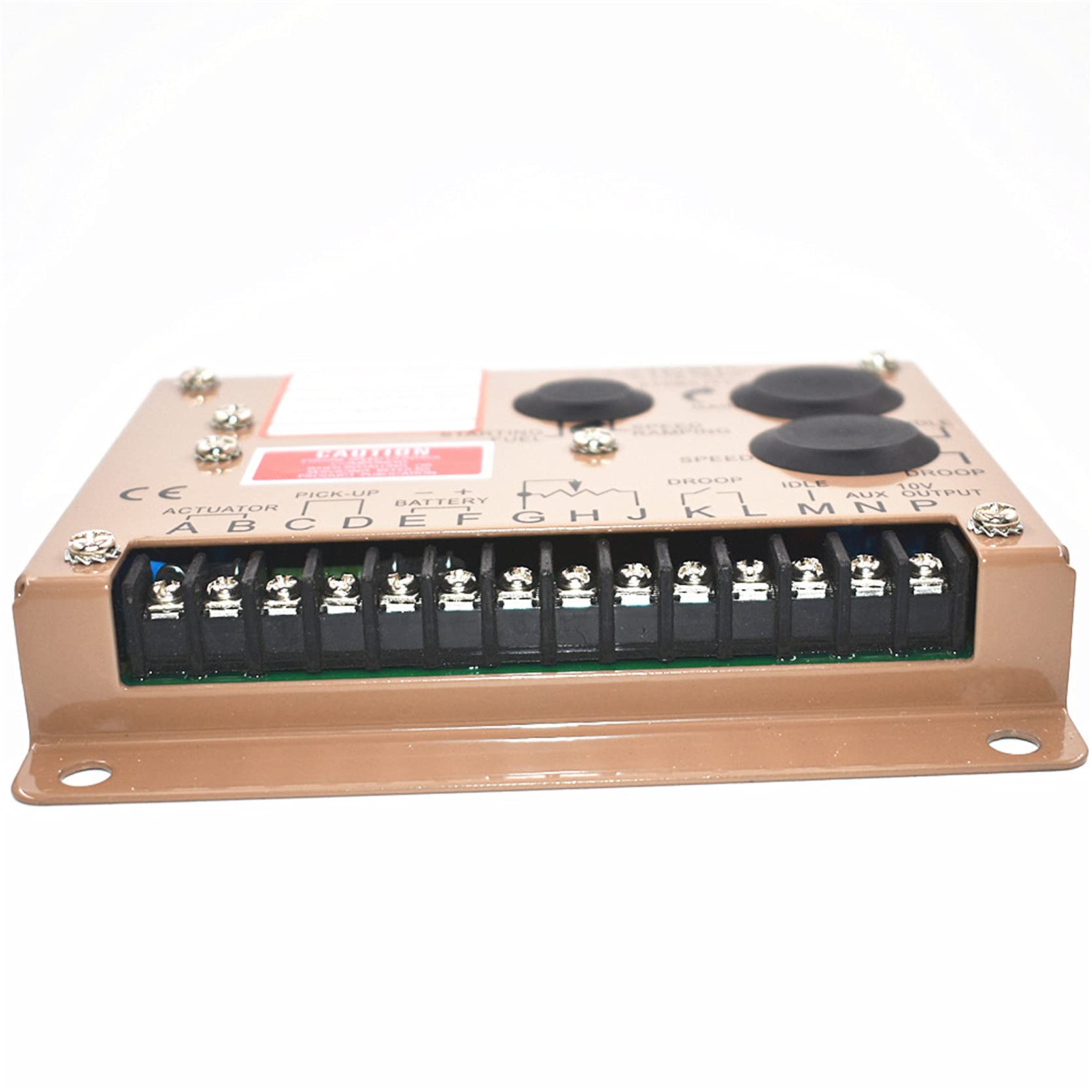

Specification:Operating temperature range: -20 Celsius - 85 CelsiusRelative humidity: 95%Vertical signal: 0.5-120V RMSOutput current: 0-10A DC square wave (continuous)Connector:A-B: ActuatorC-D: Speed sensorE-F: BatteryG-J: Trimmer potentiometerG-M: Idle switchK-L: Speed controlIsochronous Operation/Steady State Stability: -/+ 0.25% or betterSpeed Range/Governor: 1K-7.5K Hz continuousSpeed Drift with Temperature: -/+ 1% MaximunIDLE Adjustment: 160 -/+ 20Hz ~ 60% of set speedDroop adjustment Min. (K-L Jumpered) : 15Hz. -/+ 6Hz. per 1.0 A changeDroop adjustment Max.(K-L Jumpered): 400Hz. -/+ 75Hz. per 1.0 A changeDroop Adj. Max. (K-L Jumpered): 875Hz., -/+ 75Hz. per 1.0 A changeDroop Adj. Min. (K-L Jumpered): 15Hz., -/+ 6Hz. per 1.0 A changeRemote Variable Speed Range: 500 -7.5Hz. or any part thereofTerminal Sensitivity:J: 100Hz., -/+ 15Hz/Volt at 5.0 K ImpedanceL: 735Hz., -/+ 60Hz/Volt at 65 K ImpedanceN: 148Hz., -/+ 10Hz/Volt at 1Meg. ImpedanceP: 10V DC Supply at 20ma Max.Speed Switch Adjustment Range: 1000-10000Hz.Storage Temperature: -55Celsius ~ 90CelsiusShock: 20-100HZ 500mm/Sec.Actuator Current Range at 25Celsius-(Inductive Load) : Min. 2.5 Amps, Max. 10 Amps continuousSpeed Switch Relay Contacts (N.O.and N.C.): 10Amp
